1. Introduction
Coconut fiber has unique characteristics, such as moth-proofing, antibacterial, anticorruption, and elastic. It is a traditional material for mattresses and cushion, which prevail on the market. However, coconut fiber shredded from coconut shell. The moisture content of coconut fiber is 30-45%. The traditionally treatments goes through 3 to 5 days of natural drying thus wasting excess time and labor. As coconut fiber also experiences long stagnation without water. The material color darkens and the original golden color fades, mildew, and mixed with the silt impurities. It affects the quality of product. DINGLI company research and development the coconut fiber dryers, direct docking coconut fiber separator, dry shredded coconut, coconut chaff sorting, desalting and dewatering and drying a complete process within 40 minutes. It is energy conservation and environmental protection. The quality of coconut and coconut chaff can be guaranteed. After high temperature treatment, coconut pith and coconut fiber gets cleaner. The production line of the necessary equipment for the coconut pith and coconut fiber is mechanized with large-scale and intensive production.

2. Principle

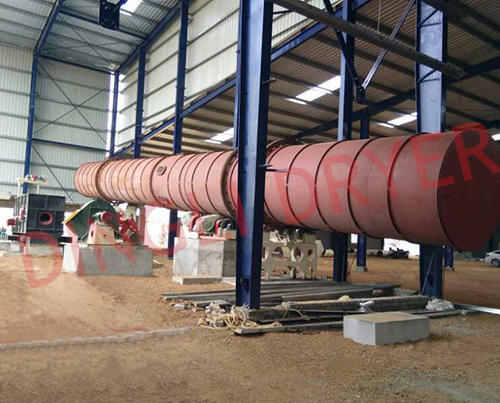

The dedicated coconut fiber drum dryer also known as coconut fiber dryer. It is mainly composed of hot blast stove, feed conveyor, rotary drum dryer, discharge conveyor, dust collector, power distribution cabinet. After the separation of fiber entering the dryer, it is uniformly distributed in the drum, lifting the material and drop it through the hot air in order to maximize heat transfer. The material is evenly dispersed in the hot air, heat transfer, mass transfer thus dries quickly in the drum. Production line of process parameters, equipment selection and structure design is analyzed for the characteristics of coconut fiber material and the actual shredded coconut fiber drying test validation. In the schematic design, fully consider the silk fiber is flammable, easy cluster, the characteristics of furfural residue, we adopted a series of innovative technology and unique technology in order to ensure good silk fiber drying effect and cleanliness.
3.Characteristic
1. For the design and manufacture of silk fiber materials with unique structure, low energy consumption and high thermal efficiency.
2. unique heating mode, controlled heat without flames, the finished fiber color, strength, flexibility remains constant under controlled operational circumstances.
3. Frequency controlled motor speed and automatic temperature control system is used according to the raw material moisture content and parameters, to achieve the required drying effect.
4. With the fiber slag cleaning device, shredded coconut fiber is wrapped with furfural slag to refine and separate the pure material with a complete clean drying process, thus the finished fiber is much pure.
5. The manufacturing of modular design, firm structure, convenient installation, no fragile parts, low maintenance cost and long service life.
6. The dryer can be attached with fiber machine, screening machine, packaging machine into coconut shell (string) drying production line.

Technical Parameter

Equipment specification DLTG2012/3 DLTG2210/3 DLTG2510/3 DLTG2512/3 DLTG2912/3
Evaporation area of drum(m2) 134 142 168 204 247
Daily output(t/d) 144.5-63.5 154.0-67.5 193.0-83.5 227.0-100.0 268.0-120.0
Evaporation capacity(t/h) 1.85 1.976 2.427 2.912 3.432
Raw material moisture(%) 25-50%
Dry matter moisture(%) 5-15%(可调)
drying temperature(℃) 270±30℃
Final assembly machine(kw) 78 85 110 125 135
Area covered(m2) 8m*18m 8m*18m 10m*18m 10m*20m 10m*22m
